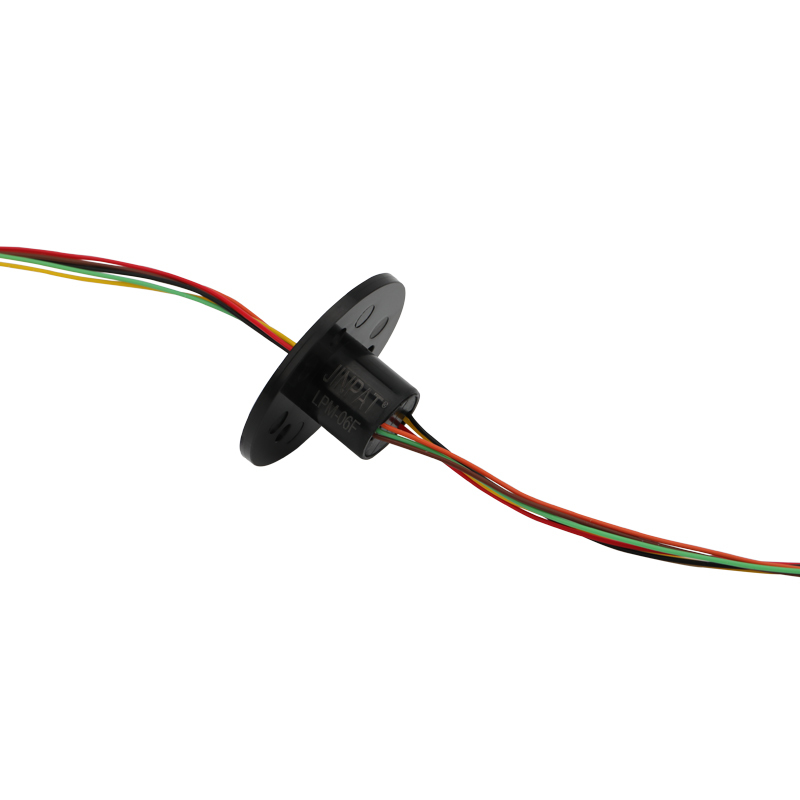

6 Circuit Mini Slip Ring 2A 240V Gold Contacts for Remote Control

The LPM-06F miniature slip ring is a standard, off-the-shelf unit that uses gold contacts at the rotary interface. Color-coded lead wires are used on both the stator and rotor for simplified electrical connections.

The sliding contact is established by a brush that presses against a metal ring. The "brush" can appear as metal fibers or as a single wire/spring with a contact pad.

• 6 circuit models available
• 2 amps per circuit, 240 VAC/DC
• Precision assembly for exceptional rotational life
• Speed up to 300 rpm continuous operation
• Gold-Gold contacts for reliable performance
• Flexible, color-coded, silver-plated lead wires
• Superior handling of low level control signals
• Optional metal housing available

• Low torque minimizes system torque budget
• Compact design fits demanding space requirements
• Smooth running operation
• Low electrical noise
• Quick shipment available for urgent requirements
• 360° continuous rotation capability
• Custom components can be added

JINPAT Electronics specializes in high-quality slip ring solutions with:

• 12,000 square meter production facility with 500+ employees
• Recognized as "National High and New Technology" enterprise
• 69 patents held
• Global partnerships with renowned enterprises
• Over 10,000 successful designs across multiple industries
• 20+ years of production and R&D experience since 1996
• Free custom slip ring solutions for various equipment
• Fast delivery service
