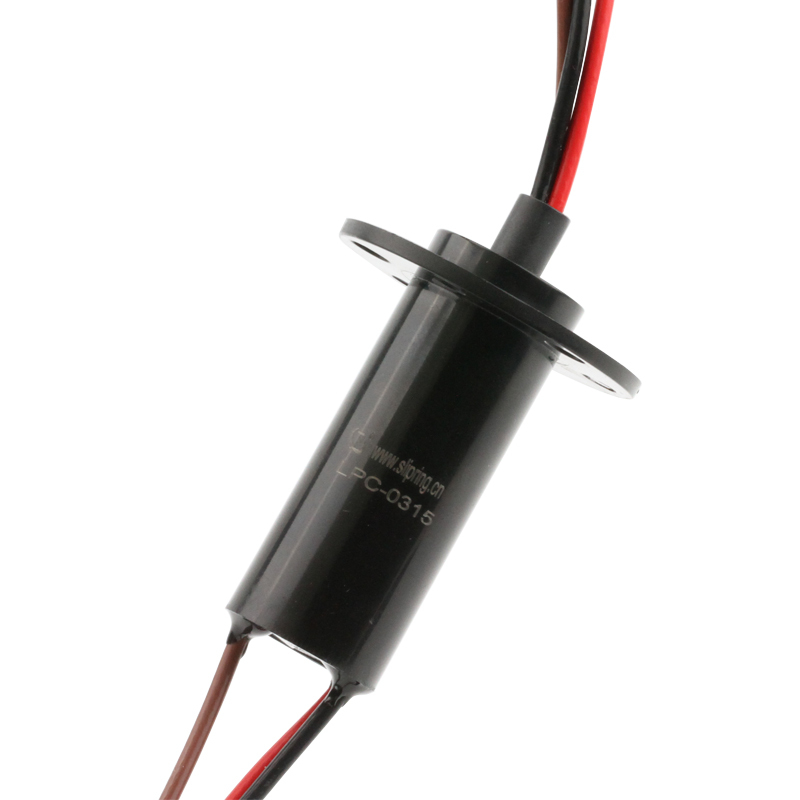

3 Circuit Wind Turbine Slip Ring 15A 380VAC/DC

  • 3 Circuit Wind Turbine Slip Ring 15A 380VAC/DC
مكان المنشأ قوانغدونغ ، الصين
اسم العلامة التجارية JINPAT
رقم الموديل LPC-0330
الحد الأدنى لكمية 1
الأسعار $20

اتصل بي للحصول على عينات مجانية وكوبونات.

ال WhatsApp:0086 18588475571

ويتشات: 0086 18588475571

سكايب: sales10@aixton.com

إذا كان لديك أي قلق ، فنحن نقدم مساعدة عبر الإنترنت على مدار 24 ساعة.

x
تفاصيل المنتج
دوائر 3 درجة حرارة العمل -20 درجة مئوية ~ + 60 درجة مئوية
تصنيف الجهد 380VAC / DC أو أعلى التصنيف الحالي 15A لكل دائرة
نوع السلك AWG13 رباعي النواة سلك محمي بأربعة نواة دوائر أقصى 125
القطر الخارجي 22mm ~ 54mm مادة الاتصال الذهب إلى الذهب
مقاومة قليل خدمة الخدمة سوبر طويلة
تكامل الإشارة Ethernet ، USB ، RS ، LVDS ، Can Bus ، Wire Fire ، SDI ، HDMI سرعة الدوران خياري
درجة الحماية خياري المواد السكنية خياري
القدرة الحالية 30A
إبراز

3 circuit slip ring 15A,wind turbine slip ring 380VAC/DC,rotary slip ring with warranty

,

wind turbine slip ring 380VAC/DC

,

rotary slip ring with warranty
منتوج وصف
Wind Turbine Slip Ring, Use AWG13 Four-Core Four-Strand Shielded Wire, 3 Wire 30A
Product Attributes
Attribute Value
Type Electronic Accessories
Circuits 3
Working Temperature -20℃~ +60℃
Voltage Rating 380VAC/DC or higher
Current Rating 15A per circuit
Product Description
Bargain Price Only in Alibaba
Standard middle-sized Capsule Slip Ring is able to integrate over 125 circuits, with optional outer diameter from 22mm~54mm. This series adopts advanced military-standard surface processing techniques, and is highly precise, compact and easy to assemble. Gold-to-gold contact ensures low resistance and super long service life. It is able to integrate various signals: Ethernet, USB, RS, LVDS, CAN bus, Fire Wire, SDI and HDMI, etc.
3 Circuit Wind Turbine Slip Ring 15A 380VAC/DC 0 3 Circuit Wind Turbine Slip Ring 15A 380VAC/DC 1
Key Features
  • Military standard surface processing
  • Precise construction
  • Gold-to-gold contact
  • Low resistance
  • Long service life
Customization Options
  • Rotating speed
  • Life span
  • Protection grade
  • Number of circuits
  • Current capacity
  • Size
  • Housing material
  • Mass production
Main Applications
  • High speed dome
  • Camera platform
  • Electrical testing equipment
  • Rotary table
  • Manufacturing and control equipment
Our Advantages
Welcome to JINPAT Electronics
Providing free custom slip rings solutions, creating propulsion for your technology
  • With a large plant of over 12,000 square meters and more than 500 employees
  • The company has been awarded the title of "National High and New Technology" and has obtained 69 patents
  • Long-term cooperation with global famous enterprises and agents all over the world
  • With Over 10,000 designs with success in civil, military, commercial and industrial applications
  • Founded in 1996, with more than 20 years of production and R & D experience
  • Providing free custom slip rings solutions, which can be suitable for a variety of equipment
  • Fast delivery
3 Circuit Wind Turbine Slip Ring 15A 380VAC/DC 2
Typical Application
3 Circuit Wind Turbine Slip Ring 15A 380VAC/DC 3
Company Information
3 Circuit Wind Turbine Slip Ring 15A 380VAC/DC 4 3 Circuit Wind Turbine Slip Ring 15A 380VAC/DC 5 3 Circuit Wind Turbine Slip Ring 15A 380VAC/DC 6 3 Circuit Wind Turbine Slip Ring 15A 380VAC/DC 7
FAQ
1. What do we do?
We focus on developing, designing, manufacturing high quality sliprings, and offer various solutions for rotating systems.
2. What is a slip ring?
A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.
3. What kinds of slip rings do we provide
  • Electrical Slip rings (capsule slip ring, through-hole slip ring, miniature slip ring, etc)
  • Signal Slip rings (USB2.0/USB3.0 slip ring, fiber optic rotary joint, high frequency slip ring, etc)
  • Pneumatic/Hydraulic Rotary Unions
  • Custom Slip Rings
  • Large volume series
4. How do I choose a slip ring?
Proper selection of a slip ring solution requires details about your application's operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. If you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started.
5. Do you provide custom slip rings?
Yes, if you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started. Our engineers will come up with perfect solution for your needs.
