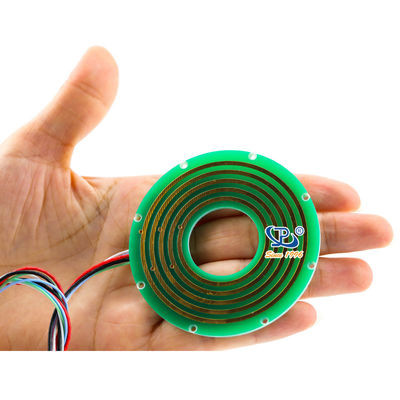

5 Circuits Pancake Slip Ring with 360° Rotation and 24VAC/DC Voltage Rating for Reliable Electrical Transmission

  • 5 Circuits Pancake Slip Ring with 360° Rotation and 24VAC/DC Voltage Rating for Reliable Electrical Transmission
  • 5 Circuits Pancake Slip Ring with 360° Rotation and 24VAC/DC Voltage Rating for Reliable Electrical Transmission
مكان المنشأ الصين
اسم العلامة التجارية JINPAT
إصدار الشهادات ISO/CE/RoHS/UL
رقم الموديل LPKS025-0501
الحد الأدنى لكمية 10 قطعة
الأسعار negotiable

اتصل بي للحصول على عينات مجانية وكوبونات.

ال WhatsApp:0086 18588475571

ويتشات: 0086 18588475571

سكايب: sales10@aixton.com

إذا كان لديك أي قلق ، فنحن نقدم مساعدة عبر الإنترنت على مدار 24 ساعة.

x
تفاصيل المنتج
دوائر 5 دوائر تصنيف الجهد 24VAC/DC
التصنيف الحالي 1A لكل دائرة مادة الاتصال ذهب إلى ذهب
سرعة العمل 0 ~ 50rpm جهد العمل 380 فولت تيار مستمر/تيار متردد
القوة العازلة ≥1000 فولت عند 50 هرتز (التيار) ≥500 فولت عند 50 هرتز (إشارة) المواد السكنية الأكسدة السوداء من سبائك الألومنيوم
مقاومة العزل 500MΩ@500VDC (التيار) 100MΩ@300VDC (إشارة) طول السلك السلك الثابت: 700 مم السلك الدوار: 700 مم
درجة حرارة التشغيل -20 درجة مئوية ~+60 درجة مئوية رطوبة ≤60٪ ر
تصنيف الملكية الفكرية IP54 سماكة 6 ملم
سرعة الدوران عالي
إبراز

5 Circuits Pancake Slip Ring,360° Rotation Slip Ring,24VAC/DC Voltage Rating Pancake Slip Ring

,

360° Rotation Slip Ring

,

24VAC/DC Voltage Rating Pancake Slip Ring
منتوج وصف
5 Circuit Pancake Slip Rings with Gold-Gold Contact Wide Range Temperature
Product Overview

The LPK series pancake slip rings by JINPAT feature an ultra-thin 6mm design, ideal for rotation systems with limited vertical installation space. These compact units combine copper rings and brush contacts around a central hole for maximum space efficiency.

Key Features
  • High rotating speed capability
  • Reliable gold-to-gold contact with minimal noise
  • Continuous 360° power and signal transmission
  • Stable connection without interference or drops
  • Compact pancake design saves vertical space
Product Advantages
  • Pre-configured photoelectric encoder option
  • Choice of solid or hollow shaft configurations
  • Rapid delivery available
  • Custom engineering solutions
Technical Specifications
Circuits 4 circuits × 10A + 9 signal circuits Working Speed 0-50 rpm
Working Voltage 380V DC/AC Contact Material Gold to gold
Dielectric Strength ≥1000V@50Hz (Current)
≥500V@50Hz (Signal)		 Housing Oxidation black aluminum alloy
Insulation 500MΩ@500VDC (Current)
100MΩ@300VDC (Signal)		 Wire Length Stator/Rotor: 700mm each
Temperature Range -20°C to +60°C Installation Method Stator fixed on customer spindle
Humidity ≤60% RH IP Rating IP54
Typical Applications
  • Packaging and wrapping machinery
  • Semiconductor handling systems
  • Industrial automation equipment
  • Exhibit display mechanisms
  • Medical diagnostic equipment
  • Rotary index tables
  • Process control systems
5 Circuits Pancake Slip Ring with 360° Rotation and 24VAC/DC Voltage Rating for Reliable Electrical Transmission 0
Company Highlights
  • 12,000+ sqm production facility with 500+ employees
  • Recognized as National High and New Technology enterprise
  • Holder of 69 technology patents
  • 20+ years experience since 1996
  • 10,000+ successful designs across industries
  • Global partnerships with major enterprises
  • Free custom engineering solutions
5 Circuits Pancake Slip Ring with 360° Rotation and 24VAC/DC Voltage Rating for Reliable Electrical Transmission 1 5 Circuits Pancake Slip Ring with 360° Rotation and 24VAC/DC Voltage Rating for Reliable Electrical Transmission 2
Frequently Asked Questions

What is a slip ring?
An electromechanical device enabling power/signal transmission between stationary and rotating structures, eliminating dangling wires and improving system reliability.

What slip ring types are available?
Our portfolio includes electrical slip rings, signal transmission models (USB/Fiber optic), pneumatic/hydraulic unions, and fully custom solutions.

How to select the right slip ring?
Consider your application's circuit requirements, voltage/current specifications, operating speed, and mounting configuration. Our engineers can assist with selection.

Do you offer custom solutions?
Yes, our engineering team develops tailored solutions for unique applications. Contact us with your requirements for a customized proposal.

Contact JINPAT for custom slip ring solutions
